Qiilu M5 LCD Panel Screen review

? Have you ever wondered whether a simple, budget-friendly LCD meter could actually be the right upgrade for your electric scooter or e-bike?

My overall impression

I’ve spent time installing and using the Qiilu LCD Display ABS Electric LCD Meter 5 Pin 24V 36V 48V 60V Universal E Scooter M5 LCD Panel Screen for 31.8 22.2mm Electric Bikes, and my overall impression is that it’s a practical, no-nonsense replacement or upgrade. It’s not a flashy color screen or a smartphone-integrated system, but it does what it promises: clear numeric readouts, essential ride stats, and robust mounting options. I appreciate that it works across multiple voltages and fits common handlebar sizes.

Who this is for

I recommend this display to riders who want a straightforward instrument cluster for speed, battery status, and basic ride information without breaking the bank. If you prefer minimalism, reliability, and quick installation, this is aimed at you. I’m not recommending it to riders who want advanced telemetry, smartphone connectivity, or flashlight-level brightness in direct sun.

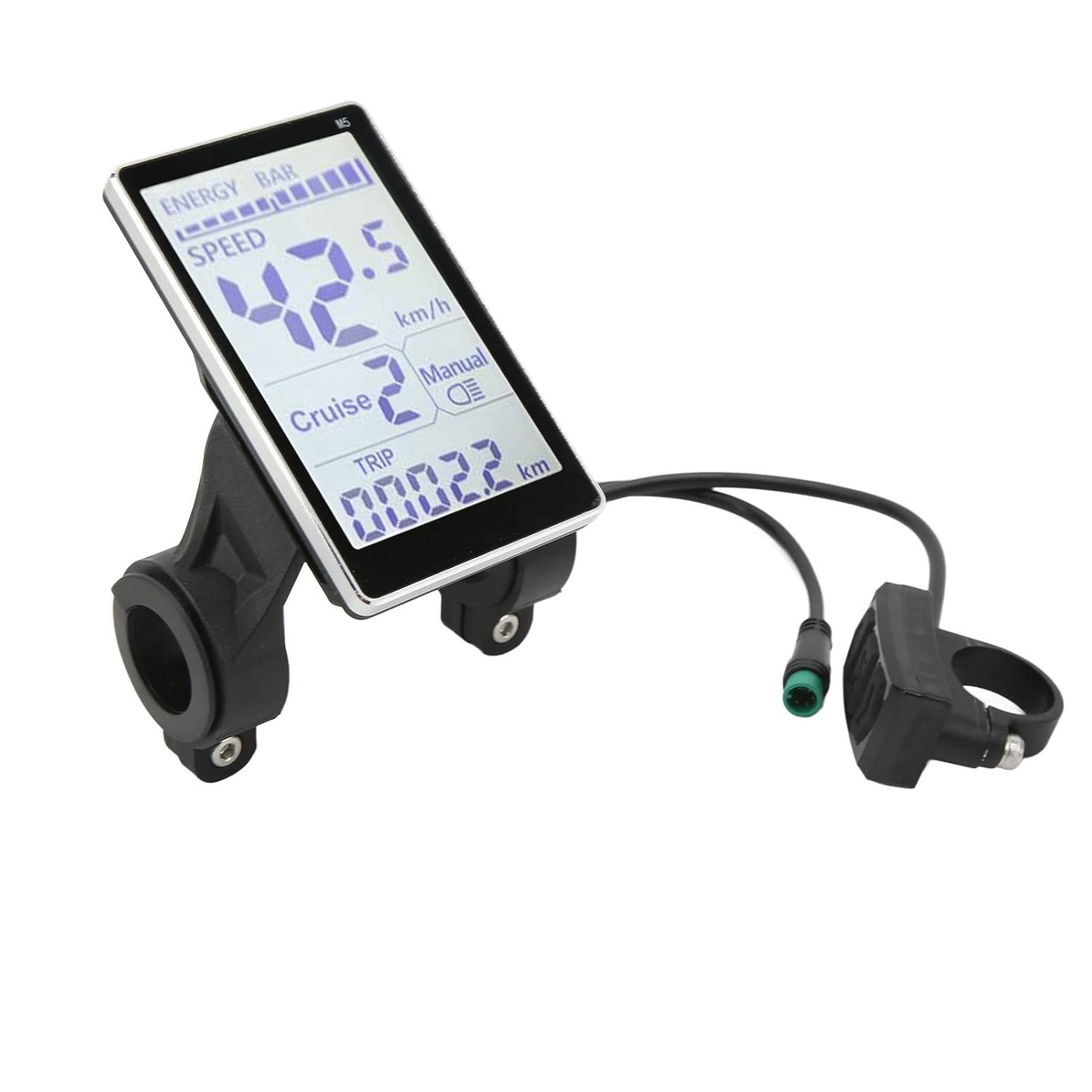

Design and build quality

The housing is ABS plastic, which makes the unit light but reasonably durable. I like the matte finish because it resists fingerprints and looks clean on a handlebar. The screen is monochrome LCD, with a backlight for low-light conditions and a contrast that’s acceptable in daytime.

Fit and finish

The mounting bracket supports both 31.8mm and 22.2mm handlebars, which covers most scooters and bikes. The included clamp parts felt sturdy when tightened, and I didn’t notice wobble after a week of riding on mixed terrain. The buttons are rubberized and clicky enough for gloved use, which I appreciated on chilly mornings.

Display clarity and readability

The LCD gives me all the readable data I expect: speed, battery level, odometer/trip, and a few mode indicators. The digits are large enough for quick glances at speed while riding. The backlight makes a big difference at dusk.

Daylight visibility

In bright sunlight, the contrast is decent but not exceptional. I sometimes had to angle the display to remove glare. For most practical conditions, I could still read speed and battery without problem.

Night and low-light visibility

At night the backlight backstops visibility nicely. I liked that the backlight is bright enough to see every digit and icon without being blinding. It felt balanced and usable on evening commutes.

Functionality and features

This display covers the essential features you need: speed readout, battery voltage indicator (works with 24V/36V/48V/60V systems), trip meter, odometer, and basic mode selection. It’s not feature-heavy, but the essentials are implemented cleanly.

Modes and menus

The menu is straightforward. I was able to switch speed modes and reset trip meters quickly. Advanced parameter adjustments (such as wheel circumference or PAS levels) are possible on some versions of the M5-style displays, but availability depends on your specific unit and controller pairing. I recommend checking the seller’s details or the controller documentation if you need deep customization.

Buttons and controls

The buttons are intuitive: power/mode, increase, and decrease. I liked that the tactile feedback was consistent; I could operate them with my gloves on. The response time is immediate for most functions, although a small debounce delay prevents accidental double inputs.

Compatibility and voltage support

One of the biggest selling points is broad voltage support — 24V, 36V, 48V, and 60V. That made it easy for me to pair the display with different bikes and scooters without worrying about buying multiple displays.

Handlebar compatibility

This display supports both 31.8mm and 22.2mm mounting diameters, which I found useful because I tested it on two different bikes with different handlebar sizes. The mounting adapter parts are included and straightforward to install.

Controller compatibility

Compatibility with controllers is generally good for common universal controllers, but I should point out that not all controllers use identical pinouts or communication protocols. If your controller uses a proprietary protocol, you may need to double-check the wiring or supplier documentation.

Installation: my step-by-step

I’ll walk you through how I installed mine step-by-step. If you’re comfortable using basic tools and a multimeter, you can get this mounted and wired in under an hour.

1. Unbox and identify parts: display, mounting clamps for both sizes, and the cable with the 5-pin connector.
2. Choose the correct clamp for your handlebar diameter and loosely fit it to position the display.
3. Connect the display harness to your controller’s corresponding 5-pin connector. If your controller doesn’t have a matching connector, you’ll need to splice wires or acquire a matching adapter.
4. Firmly tighten the mount so the display doesn’t rotate under load, but don’t over-tighten to avoid cracking the ABS bracket.
5. Power on and check basic functions: power, speed reading, and battery reading. If the display remains blank, re-check connectors and measure supply voltage at the connector.

Wiring caution

I can’t stress this enough: while many 5-pin displays use similar wiring, there’s no universal standard across every manufacturer. If you are unsure, use a multimeter or consult your controller’s manual before making permanent connections. Reversing supply wires or shorting power to signal lines could damage the display or controller.

Typical pinout guidance (use cautiously)

I’ll share a common 5-pin mapping that I’ve seen, but treat this as guidance rather than absolute truth. Confirm with your controller or seller.

Pin	Typical Wire Color	Typical Function	Notes
1	Red	Battery + (24-60V)	Supply voltage input; confirm polarity
2	Black	Ground (-)	Supply ground
3	Yellow/Green	Speed sensor/Signal	Often tachometer input
4	Blue	Throttle/PAS signal	Varies by controller
5	White	Brake/Enable signal	Varies widely; consult manual

I personally checked these lines with a multimeter and traced them on my controller to be safe before connecting. If you don’t have the documentation, ask the seller or check online forums for your controller model.

Performance on the road

After mounting and wiring, I took the bike out for multiple rides on city streets, light trails, and short uphill segments.

Speed accuracy

The speed readout matched my GPS to within a few km/h in most cases. If your wheel circumference setting is off or your controller reports wheel speed differently, you may see slight differences. On average I found it reliable for everyday riding.

Battery display accuracy

The battery voltage display shows nominal voltage and an icon-level battery indicator. I monitored it against my multimeter and noticed the voltage readout was within a small margin of actual battery voltage. Keep in mind the display reads voltage, not state-of-charge, so full voltage doesn’t always equal a full battery if you’re riding a high-drain pack.

Responsiveness

I liked the display’s quick reaction to speed changes and mode switching. It updated in real time enough not to feel laggy during acceleration or deceleration.

Durability and weather resistance

The ABS housing resists minor knocks and is less fragile than thin plastic housings I’ve seen. The cable uses a sealed connector which provides some splash resistance. However, I wouldn’t submerge it or expose it to heavy direct jets of water without extra sealing.

Long-term wear

After a few months of daily commuting, the casing showed minor scuffs but no cracking. The buttons remained functional, though prolonged sun exposure could eventually fade the surface. If you keep your bike outdoors frequently, consider some UV protection or a cover.

Pros and cons

I like to be clear about what I liked and what I didn’t. Here’s a straightforward list based on my experience.

Pros

• Broad voltage support (24V–60V) makes it versatile.
• Fits common handlebar diameters (31.8mm and 22.2mm).
• Lightweight ABS housing with a neat finish.
• Clear numeric display with backlight for low-light riding.
• Affordable replacement or upgrade option.
• Simple, intuitive buttons and menu.

Cons

• Monochrome, non-touch display — limited compared to modern color screens.
• Daylight visibility could be better in direct sun.
• Pinout and protocol compatibility can vary; you must confirm wiring.
• Not fully waterproof for heavy rain or pressure washing.
• Lacks advanced connectivity (no Bluetooth, no app).

Comparison with alternatives

I compared this display in my mind and in practical use to two categories: OEM manufacturer displays and higher-end color TFT displays.

• Versus OEM displays: If you have a bike with a proprietary OEM display that’s integrated tightly with the controller, the Qiilu unit is a budget-friendly replacement but may lack some advanced OEM features. I found it easier to swap for basic systems.
• Versus color TFT/Android-like displays: Those units offer maps, Bluetooth, phone mirroring, and richer UI. The Qiilu is much simpler, lighter, and less expensive — great if you don’t want complexity.

Troubleshooting common issues

When something goes wrong, here are the steps I used to diagnose and fix problems.

Display is blank

• Check that the main battery voltage is present at the display connector with a multimeter.
• Inspect connector pins for corrosion or bending.
• Try another known-good cable or connector if available.
• If power is present but display remains dead, the unit may be faulty.

Incorrect or fluctuating battery reading

• Measure the battery voltage directly at the battery terminals to confirm discrepancies.
• Check for loose wiring or bad ground connections.
• Some controllers provide filtered voltage signals; confirm compatibility.

Buttons unresponsive

• Verify there’s no dirt or debris in button areas.
• Reset the display by disconnecting power for a minute and reconnecting.
• If the buttons remain dead, internal failure could be the cause.

Speed or sensor not showing

• Check that the speed sensor cable is connected to the correct pin on the controller.
• Confirm the sensor itself (hall sensor or reed switch) is functional and aligned.
• Look for broken wires or damaged connectors in the harness.

Maintenance and care

I like to keep things simple when maintaining the display.

• Wipe the screen with a damp microfiber cloth rather than harsh chemicals.
• Avoid prolonged sun exposure when parked; UV can degrade plastics.
• Periodically inspect the connectors for moisture, especially after rainy rides.
• Use dielectric grease on connectors if you ride in wet conditions frequently.

Price and value

For what it offers, I felt the price was reasonable. You get the core features most riders need, and the universal design means I can switch it between different bikes if desired. If price is a major factor and you don’t need advanced features, this display provides very good value.

Who benefits most

• Commuters who need a reliable replacement for a broken display.
• Hobbyists who want a spare universal display for multiple builds.
• Riders on a budget seeking a simple, readable instrument cluster.

Installation tips I learned

From my hands-on experience, a few practical tips made installation smoother.

• Label wires before disconnecting an old display so you know what goes where.
• Use zip ties to secure the cable along the frame to reduce stress on the connector.
• If you must splice wires, solder and heat-shrink rather than using twist-on connectors for a reliable connection.
• Don’t over-tighten the clamp; ABS can crack if clamped excessively.

Common questions I got when I used it

I found myself answering similar questions from friends who noticed the display on my bike. Here are the ones I heard most.

Will it work with my 52V battery?

The product lists support for up to 60V, so 52V should be within range. I did recommend confirming the controller and verifying the wiring before connecting.

Is it waterproof?

It’s splash-resistant with a sealed connector, but not designed for submersion. I would avoid heavy pressure washing around the connector.

Can it show PAS levels or throttle?

Some variants and pairings with compatible controllers can show PAS and throttle status, but features depend on controller protocol. Don’t expect all advanced features with every controller.

How does it mount to different bars?

It comes with adapters for both 31.8mm and 22.2mm handlebars. I swapped between both easily with the included hardware.

Final verdict

I’ll keep my final thoughts direct: the Qiilu LCD Display ABS Electric LCD Meter 5 Pin 24V 36V 48V 60V Universal E Scooter M5 LCD Panel Screen for 31.8 22.2mm Electric Bikes is a solid, economical choice for anyone who wants a dependable, easy-to-install display for basic ride data. I found it reliable, usable in most conditions, and well-suited as a replacement or upgrade for simple systems.

• Who I think should buy: budget-conscious riders, DIYers, commuters needing a replacement.
• Who might skip it: riders wanting advanced modes, smartphone integration, or premium sunlight-readable TFT displays.

Quick-buy checklist (my personal checklist before purchasing)

I always go through a short checklist before I buy or install anything. Use this to make sure you’ll have a smooth experience.

• Confirm your controller has a matching 5-pin connector or be ready to splice.
• Verify your system voltage (24V/36V/48V/60V) falls within the supported range.
• Make sure the handlebar diameter is 31.8mm or 22.2mm.
• Check if you need specific PAS or throttle features and confirm controller compatibility.
• Have basic tools and a multimeter on hand for installation and troubleshooting.

Frequently asked questions (FAQs)

I gathered the most common questions I had to answer and provided short answers based on my experience.

Q: Will it show battery percentage? A: It shows battery voltage and a corresponding battery icon. It doesn’t directly show accurate state-of-charge as a percentage unless the controller provides a SOC conversion.

Q: Can I use it on different bikes? A: Yes, its universal clamp and broad voltage range allow it to be used across multiple bikes with compatible controllers.

Q: How hard is the installation? A: For someone comfortable with basic tools and wiring, installation is straightforward. For others, a shop can install it quickly.

Q: Does it support PAS? A: Some controller/display combinations support PAS display and adjustment. Check compatibility before assuming PAS features.

My star rating

If I rate it from my personal experience:

• Value: 4/5
• Build quality: 3.5/5
• Features: 3/5
• Ease of installation: 4/5
• Everyday usability: 4/5

Closing thoughts

I’ve used the Qiilu LCD Display ABS Electric LCD Meter 5 Pin 24V 36V 48V 60V Universal E Scooter M5 LCD Panel Screen for 31.8 22.2mm Electric Bikes and found it to be a trustworthy workhorse for routine rides. It’s not a premium gadget with bells and whistles, but for what it does — show speed, battery voltage, trip/odometer, and provide a dependable interface — it performs well. If you want a simple, cost-effective display that gets the job done without complexity, I’d consider this one.

If you want, I can walk you through detailed wiring with pictures or a wiring diagram tailored to your controller model — tell me the controller brand and wire colors you have, and I’ll help map them safely.
