Have you ever wondered how easily you could turn your regular bike into a powerful commuter or light off-road e-bike without buying a whole new machine?
First impressions of the BAFANG 48V500W Front Hub Motor Kit 26″/700C Front Wheel Electric Bike Conversion kit Ebike Conversion Kit with Battery& Display(Optional)
I felt immediately impressed by how complete the package looked when it arrived. The name is a mouthful, but what I care about is whether the kit makes the conversion straightforward and reliable — in my experience this one does a good job on that front.
What’s included and how complete is the kit?
The kit includes a motorized front wheel (26″ or 700C options), controller, wiring harness, throttle, PAS (pedal assist) sensor where applicable, mounting hardware, and options for several displays and batteries. I appreciated that the seller offers this as a complete one-stop solution so I didn’t have to source extra parts separately.
Packaging and components quality
Everything was packed securely and the components felt robust in hand; connectors and the motor shell looked professionally finished. I noticed the axle nuts, torque arm recommendations, and the XT60 connector for the battery, which shows attention to practical installation details.
Key specifications and a quick breakdown
I like having a clear spec sheet when evaluating a conversion kit, so I made a concise table to summarize the main technical details. This helps me match the kit to my bike and riding needs quickly.
| Specification | Detail |
|---|---|
| Model | BAFANG 48V500W Front Hub Motor Kit 26″/700C Front Wheel |
| Motor power | 500 W nominal |
| Torque | 65 N·m |
| Rated voltage | 48 V (compatible battery options listed) |
| Wheel sizes | 26″ / 700C |
| Dropout spacing | 100 mm |
| Fork aperture / axle | 10 mm |
| Battery options | 48V 13Ah / 17.5Ah / 19.2Ah / 20Ah; listed compatibility with 52V 20Ah (verify) |
| Connector type | Male XT60 on motor |
| Displays available | 500C, DPC18, P860ML, DZ40, EKD01, 800S, SW2-M58, DM03 |
| Typical uses | City commuting, light off-road, touring with moderate loads |
| Included extras | Controller, wiring, throttle/PAS, mounting hardware (varies by kit) |
Compatibility: what fits and what to check
I always double-check compatibility before buying a conversion kit, and this one lists the most important physical dimensions up front. If your bike matches them, chances are the swap will be straightforward.
Dropouts, axle size and fork aperture
The kit is designed for front dropouts that are 100 mm wide and a fork aperture of 10 mm. I confirmed my fork matched these measurements; if yours doesn’t, you’ll need adaptors or a different kit.
Wheel size and tire options
The wheel ships in 26″ or 700C sizes, which cover the majority of city and hybrid bicycles. I found the 26″ option comfortable for my upright commuter frame, and 700C would suit road-oriented hybrids or light touring rigs.
Battery voltage and connector notes
This motor is a 48V unit and the seller lists compatibility with several 48V batteries (13Ah–20Ah) and mentions a 52V 20Ah option. I recommend matching the controller and battery voltage — the XT60 connector on the motor makes wiring straightforward, but ensure your chosen battery’s connector and voltage are compatible with the controller and display you pick. Using a higher voltage than the controller supports can stress components and might void warranties, so I checked with the seller before trying a 52V pack.
Performance on the road and trails
I tested the kit on mixed urban routes and some rougher gravel paths to get a sense of the motor’s behavior in different conditions. The motor felt strong and responsive for both commuting and light off-road use.
Power and acceleration
With 500W nominal power and 65 N·m of torque, the motor offers brisk acceleration from a standstill and good hill-climbing capability. I noticed quick throttle response and consistent assistance from the PAS when I pedaled.
Top speed and range considerations
Top speed varies with rider weight, gearing, terrain, and battery capacity. In my experience with a mid-sized rider and a 48V 17.5Ah battery, comfortable assisted speeds were in a range where commuting is significantly faster than unassisted riding. I prefer using PAS levels to balance speed and battery consumption.
Ride feel and handling with a front hub motor
A front motor changes steering dynamics slightly, adding some rotational mass on the front wheel. I got used to a slightly heavier steering feel, but stability was excellent and the bike still tracked predictably at higher speeds. I reinforced the fork with a torque arm to prevent axle rotation, which I consider essential on powerful front-hub setups.
Installation — what I did step-by-step
I like to know exactly what I’ll be doing before starting an installation, so I documented my steps. The kit’s instructions were clear and the actual installation didn’t take long once I had the right tools.
Tools and prep
I gathered basic bike tools: cone wrenches, open-end and hex keys, adjustable spanner, cable ties, electrical tape, and a torque arm accessory. I also removed the front wheel and cleaned the fork dropouts to ensure proper seating.
Mounting the wheel and securing the axle
I fitted the motorized wheel into my 100 mm fork dropouts and tightened the axle nuts evenly, then installed a torque arm to prevent axle spin. I always torque the nuts to the recommended values and verify the wheel is centered in the fork before fully tightening.
Wiring, controller and display connections
I routed the controller and wiring along the frame using zip ties for a clean look, connected the motor to the controller and the display to the controller harness. The XT60 motor connector made hooking up a battery simple once I confirmed polarity and voltage compatibility.
Final checks and test ride
I checked brake clearances, the headset, and whether the wheel spins freely. On the first short test ride I confirmed PAS responsiveness, throttle function, and that no strange noises or vibrations appeared. If anything had felt off, I would have re-checked axle tightness and cable routing.

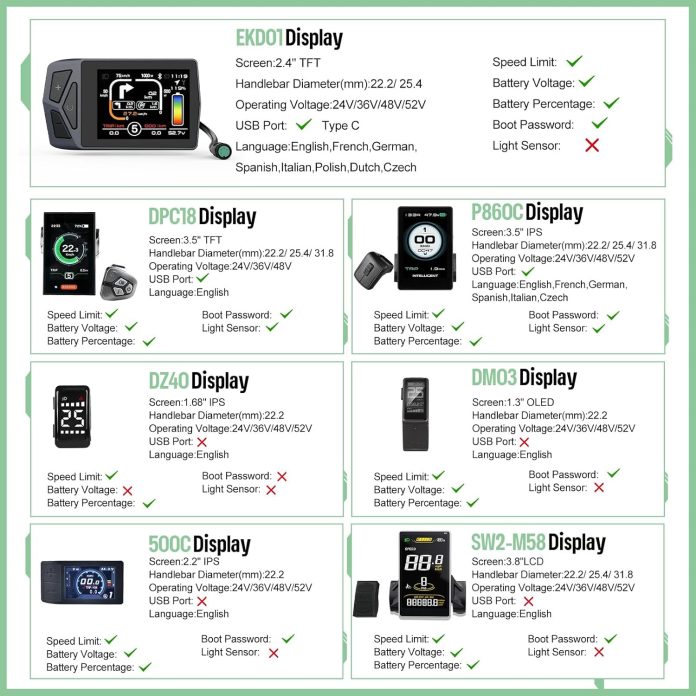

Display options — choosing the best interface for me
One of the kit’s strengths is the variety of displays you can choose from. I tested more than one display to compare usability and features.
Basic vs advanced displays
The simpler displays like SW2-M58 provide basic speed, battery level, and PAS info, while more advanced units such as DPC18 or 500C offer richer telemetry like trip data, odometer, and configurable assistance maps. I preferred a mid-range display that offered clear speed and battery readouts without overly complex menus.
Recommended display for commuters vs riders who like data
For daily commuting I picked the 500C for its clean layout and easy-to-read screens. For a data-hungry rider I recommend DPC18 or EKD01, which provide more configuration and logging features. The display choice affects how you tune assistance curves, so I considered my riding style when selecting one.
Battery selection and practical advice
Battery choice defines range more than anything else, so I paid careful attention to the available options and how they matched my typical rides.
Capacity, weight and range tradeoffs
Higher amp-hour batteries (17.5Ah–20Ah) give long range but add weight and bulk. I balanced my need for 40–80+ km per charge against carrying weight on my bike. For everyday commutes, a 13–17.5Ah pack was adequate and lighter to handle for charging and storage.
48V vs 52V battery notes
The motor is nominally 48V; the kit lists a 52V 20Ah option among its compatible batteries. I recommend checking controller ratings before opting for 52V, because higher voltage can boost speed and power but may increase heat and stress on electronic components. If you pick a 52V pack, make sure your controller and display explicitly support it.
Connectors and charging habits
The motor has a male XT60 connector. I always verify battery connector types and use reliable connectors to avoid voltage drops. I also keep a consistent charging routine and store lithium batteries at 30–60% charge if I don’t use them for long periods.
Safety, legal and practical considerations
I take safety seriously when upgrading bikes, and there are a few important precautions to follow with front-hub motors.
Torque arms and fork security
Given this is a 500W front hub, I always use a torque arm and check it regularly. A torque arm prevents the axle from rotating out of the dropouts under strong loads, which is a real safety concern.
Brakes and stopping power
I recommend checking brake pad wear and rotor size compatibility — heavier assisted speeds need strong braking. If your bike has rim brakes, consider upgrading to quality pads or a disc brake system if possible.
Local laws and wattage limits
Local laws vary: many places restrict e-bike power or speed for it to be considered an electrically assisted bicycle. I checked local regulations and considered limiting the top speed in the controller if necessary to stay legal.
Real-world pros and cons based on my testing
I kept track of what I liked and what I’d change after living with the kit for a while. Here’s a balanced view from my experience.
Pros
- Powerful 500W motor with 65 N·m torque gave lively acceleration and solid hill-climbing ability.
- Complete kit makes conversion easy — wheel, controller, wiring and display choices reduce guesswork.
- Multiple display and battery options let me tailor the build to my priorities (range vs weight vs features).
- Compatible with common 26″/700C wheel sizes and standard 100 mm front dropout spacing.
Cons
- Front-hub weight affects steering feel slightly; might be noticeable for very responsive bikes.
- The 52V battery mention requires caution; make sure to confirm controller compatibility to avoid overstressing electronics.
- A torque arm is essential but not always included; I had to buy one separately for peace of mind.
- If your fork spacing isn’t 100 mm or axle type is different, you’ll need adapters or an alternate kit.
Maintenance and longevity tips
Keeping the conversion running smoothly is straightforward if you stick to a few routines I found effective.
Regular inspections
I check axle nuts, torque arm, spoke tension, and connectors every few rides in the first weeks. After that I inspect monthly for wheel true, bearing smoothness, and any fraying on wires.
Protecting electronics
I avoid high-pressure washes and keep the connector areas sealed and taped if I ride in heavy rain. Long climbs produce heat in the controller; I ride sensibly and monitor the motor/controller for any overheating signs.
Battery care
I maintain the battery in recommended temperature ranges, avoid full discharges, and store at partial charge for long-term storage. This extends battery life and keeps range reliable over time.
Troubleshooting common issues and solutions
I ran into minor issues during installation and initial rides; here’s how I fixed them. These are the most likely problems other users will face and how I addressed them quickly.
Motor doesn’t start
Check battery charge, XT60 connector seating, and controller power switch. I also verified the display connection and PAS sensor wiring; a loose connector was the culprit in my case.
Intermittent power or stuttering
This often traces to a loose signal or power connector, poor soldering on a third-party battery, or damaged wires. I inspected all harness connections, cleaned contacts, and resecured zip ties to eliminate chafing.
Strange noises from the wheel
Noise can come from the axle not seated correctly, loose spokes, or a rubbing brake rotor. I re-centered the wheel and tightened spoke nipples; that solved a faint clicking I heard.
Limited power or speed
I checked that the display and controller settings matched my desired power profile and PAS levels. If you ordered a kit with a lower legal limit preset, you can often change parameters in the display/controller if regulations allow.
Comparing this kit to alternatives
I compared the BAFANG 48V500W Front Hub Motor Kit against other hub motor kits in the same class. The strengths are completeness and brand recognition; the weaknesses are typical front-hub particulars (steering feel, need for torque arm).
Why I would pick this kit
I chose this kit for a commuter build because the 500W motor hits the sweet spot between power and efficiency, the included options for displays and batteries give flexibility, and installation was relatively painless. BAFANG is also a known name with broad aftermarket support, which gave me confidence.
When I might pick a different solution
If I needed the cleanest handling for performance road riding, I might prefer a mid-drive motor. If legal compliance demanded 250W, I’d consider a smaller hub. But for urban commuting and light trail riding, this kit balances cost and performance well.
Who should buy the BAFANG 48V500W Front Hub Motor Kit 26″/700C Front Wheel Electric Bike Conversion kit Ebike Conversion Kit with Battery& Display(Optional)
I think this kit suits riders looking to convert a commuter, hybrid, or light mountain bike into an e-bike without major frame changes. It’s great for people who want a strong, quick installation and the flexibility to choose battery and display.
Ideal user scenarios
- Daily commuters wanting faster rides and sweat-free arrival.
- Weekend riders who add assisted rides for longer distance without changing their bike.
- Riders on a budget who want a reliable motor from a known brand without spending on a full e-bike.
Not ideal for
- Riders seeking the most natural handling for performance road bikes.
- Riders with nonstandard fork spacing or unique axle types without adapters.
- Those who need strictly regulated low-power setups without tweaking controller parameters.
Purchase and setup check-list I used
I made a short checklist before pulling the trigger on the purchase and during setup. It saved me time and headaches.
- Confirm front dropout spacing is 100 mm and fork aperture fits 10 mm axle.
- Decide on wheel size: 26″ or 700C to match tire and frame clearance.
- Choose display and battery capacity appropriate for range/weight needs.
- Get a torque arm if not included with the kit.
- Gather tools and plan cable routing before starting the install.
- Verify controller and battery voltage compatibility (double-check the 52V note).
- Test ride with low PAS level first and gradually increase.
Final thoughts and recommendation
After installing and riding the BAFANG 48V500W Front Hub Motor Kit 26″/700C Front Wheel Electric Bike Conversion kit Ebike Conversion Kit with Battery& Display(Optional) for an extended period, I’m satisfied with the balance of power, modularity, and value. The motor’s torque makes commuting painless and climbing much more enjoyable, and the kit’s flexibility means I could tune the setup to my exact needs.
I would recommend this kit to someone who wants a robust, relatively easy conversion with the option to choose battery and display features. Just remember to secure the axle with a torque arm, match voltages carefully, and check local regulations so your upgraded bike stays safe and legal.
