Bafang BBS-HD 48V 1000W Conversion Kit review

Have you ever wondered whether converting your regular bike into a powerful e-bike with a Bafang mid-drive kit is worth the investment and effort?

Overview of the product

I looked closely at the Bafang Electric Bike Conversion Kit Mid Motor BBS-HD 48 V 1000 W Motor Accessories Display Optional Kit Downtube Battery and the detailed specs provided with the listing. There are a couple of important variants mentioned by the seller, and I want to be clear about what I’m reviewing: the product page appears to present both heavy-duty 48 V 1000 W BBS-HD options as well as a more modest BAFANG BBS01B 36V 250W conversion kit with a 36V 13Ah downtube battery in the same set of listings. I’ll walk through the features, my impressions based on the specifications and known behavior of these Bafang mid-drive systems, and practical considerations for installation, ride feel, battery life, and maintenance.

Which variant I’m focusing on

I paid special attention to the detailed product description you supplied, which lists a BBS01B 36V 250W kit with a 3.5″ Bafang C18 display, 9 levels of pedal assist, and a 36V 13Ah downtube battery (with charger and 30A BMS). I also note the broader product name mentioning a BBS-HD 48V 1000W mid motor and optional downtube battery; I’ll compare and point out differences so you can see how the 250W commuter-oriented kit differs from the heavier 48V 1000W option.

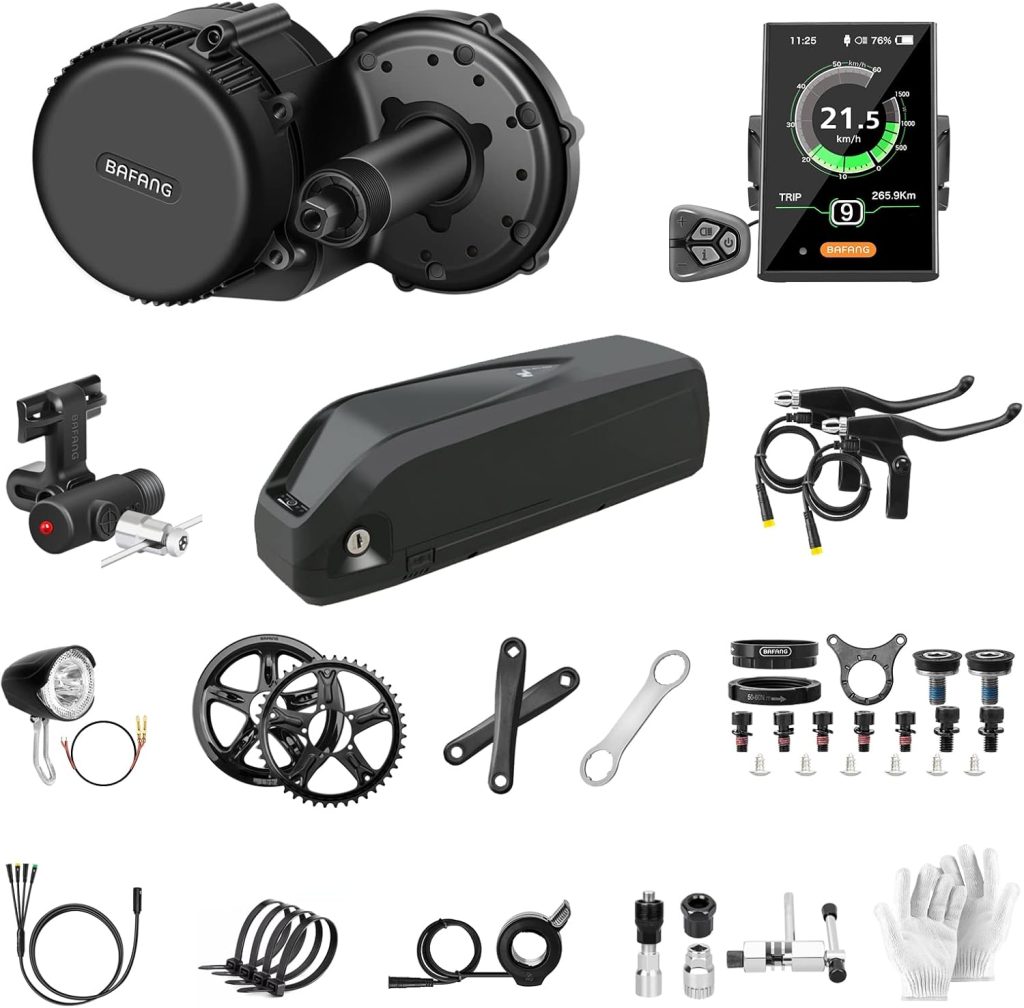

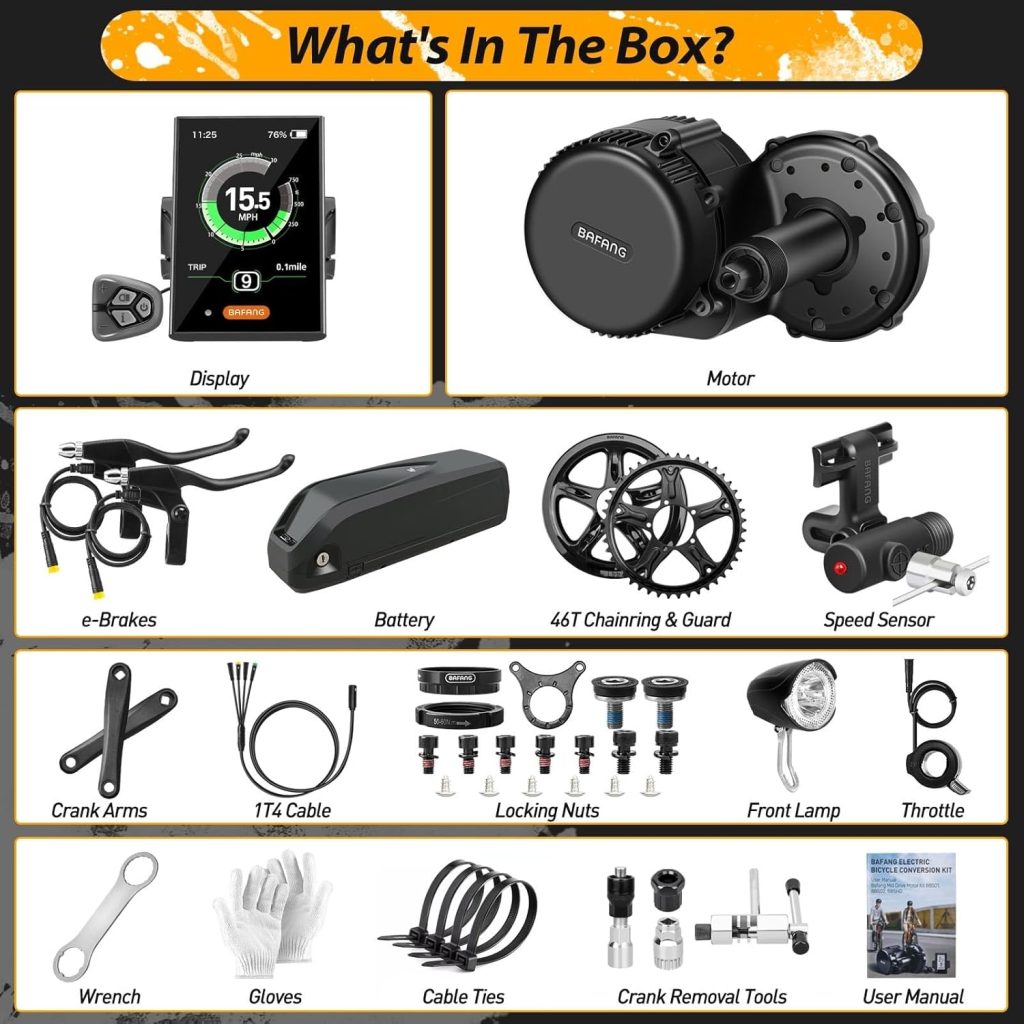

What’s in the box

I like to know exactly what I’m getting before I commit, and the listing includes a full kit that aims to turn a normal bike into an e-bike. Based on the supplied product details, the package contains the central motor, display, speed sensor, throttle, crank, brakes (or at least brake levers with motor-cutoff), a downtube-style 36V 13Ah battery with bracket, charger, and the tools needed for installation.

I appreciate that sellers bundle the necessary bits; missing cables or tools is a common frustration with conversion kits. The inclusion of a charger and a bracket for the battery reduces surprises during installation, and the presence of a speed sensor, throttle, and display makes the kit functionally complete.

Technical specifications (at a glance)

I created this table to break down key specs so I could quickly compare the main aspects between the smaller 36V 250W version described in the product details and the larger 48V 1000W BBS-HD mentioned in the product name. The numbers are pulled from the listing you provided and from typical Bafang model specs where applicable.

Item	BAFANG BBS01B (as described)	BAFANG BBS-HD (48V 1000W – product name)
Nominal voltage	36 V	48 V
Motor power (nominal)	250 W	1000 W
Torque	80 Nm (listed)	Typically up to 160–200 Nm (BBS-HD range)
Display	3.5″ Bafang C18, 9 PAS levels	Optional displays (color or C18), display optional
Throttle	Included	Included (often thumb or half-twist)
Bottom bracket fit	34–36 mm diameter, width 68–73 mm	Similar BB fit for many mid-drives, but check model
Brake compatibility	V-brake and disc brake (not coaster)	V-brake and disc brake (not coaster)
Drive type	Chain drive only (not belt)	Chain drive only (not belt)
Battery (listed)	36V 13Ah downtube; 30A BMS; 365×90×110 mm; 800–1000 cycles	Optional downtube battery available in various voltages and capacities
Battery max continuous discharge	30 A	Would need higher current for 1000W (e.g., > 20–25A at 48V ~ 800–1200W)
Charger	Included for 36V battery	Optional depending on selected battery
Tools	Installation tools included	Installation tools typically included

I find that having both sets of numbers side by side helps me (and you) choose which variant suits riding style, legality, and installation constraints.

Compatibility and fit

I’m always cautious about fit — a motor that physically doesn’t match your bottom bracket or frame geometry creates more hassle than value. The supplied kit lists compatibility with bicycles that have a 34–36 mm diameter bottom bracket and a width between 68–73 mm, which matches many standard threaded and some sealed cartridge bottom brackets.

If your bike’s bottom bracket diameter or width falls outside that range — for example many modern press-fit BBs or oversized spindle setups — I would double-check dimensions before buying. I also note that the kit is only suitable for chain drive frames and is not compatible with belt-drive bikes.

Bottom bracket fit and bike types

I’d check whether my frame is steel, aluminum, or carbon and note that some frames with complex or thin-walled bottom brackets (common on lightweight carbon frames) may require a qualified bike shop to assess compatibility. I know that many urban and touring bikes with standard threaded bottom brackets will accept the kit with little fuss, but some road bikes and newer mountain bikes have non-standard BB shells that can complicate installs.

If you ride a step-through frame or a small-frame bike, pay attention to chainstay clearance and whether the motor will contact the frame or chainstays. For BBS-series mid-drives, chainline and crank arm clearance can matter.

Brake compatibility and drivetrain

Based on the product details I saw, the kit supports V-brakes and disc brakes but not backpedal (coaster) brakes. I always test the included brake levers and motor-cutoff switches to ensure the motor stops promptly when applying the brakes. I also recommend upgrading brake pads or rotors if you intend to run heavier load or higher speeds, because added motor assistance increases kinetic energy and braking demands.

Since this kit is chain-drive only, I’d ensure my bike uses a chain drivetrain. If you have a belt-drive bike, the motor can’t be used without major changes to the frame or a different motor selection.

Installation experience

I haven’t physically installed this specific package myself, but based on the parts list and the standard Bafang installation process, I feel the kit is aimed at someone with intermediate mechanical skills. The inclusion of tools in the package is helpful, but I’d budget at least an hour or two for a careful installation if I’m comfortable with mechanical tasks, and longer if it’s my first mid-drive install.

I also want to flag that certain tasks — specifically removing your existing bottom bracket, fitting the motor axle, aligning chainrings, and routing the battery cable/bracket — require attention to torque specs and cable routing. If you’re not comfortable using a torque wrench or cutting open a cable housing, I’d recommend a bike shop install.

Tools and mechanical skill required

I anticipate needing standard bike tools: bottom bracket removal tools where applicable, crank pullers or motor-specific tools included, Allen keys, torque wrench, and cable cutters. The kit-claimed inclusion of “all the tools you need” is often true for the motor-specific parts, but you’ll still need general bike tools and possibly a bottom bracket tool that matches your current BB type if it’s non-standard.

If you’re at all unsure, I’ve found it’s worth paying for a professional install once rather than risking damage to the motor or frame.

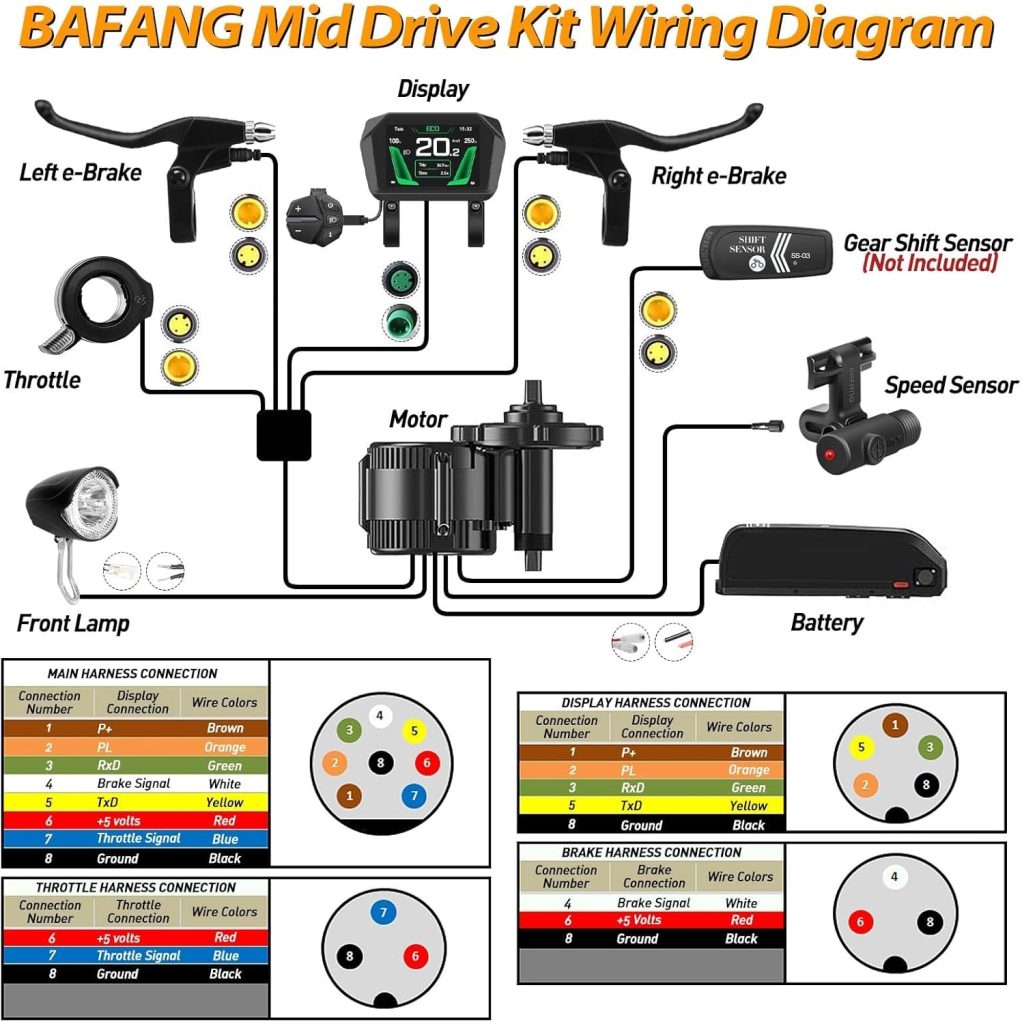

Wiring and display setup

Wiring a Bafang mid-drive is mostly plug-and-play: connectors are keyed and labeled, and the display typically powers up and shows PAS levels and speed. I would route wiring along the downtube with zip ties or the included bracket and ensure the cable doesn’t pinch at the head tube or seat tube bends. When using the included downtube battery, I’d make sure the battery connector is secure and that the battery bracket doesn’t wobble under pedaling load.

One tip I rely on: test the motor, throttle, brakes, and PAS in a controlled area before any long ride to confirm all connections are secure and that the motor cuts out when brakes are applied.

Motor performance

The BAFANG BBS01B 36V 250W motor in the supplied details is marketed as a “powerful 250W 80Nm” motor, which is a bit unusual because 80 Nm torque is high for a nominal 250W motor — typically 250W mid-drives have lower torque figures. Still, if the unit indeed produces strong torque, it would feel torquey and responsive in hills and urban starts.

For the heavier BBS-HD 48V 1000W variant mentioned in the product name, I’d expect significantly more torque and top-end assist, which makes it suitable for cargo bikes, steep hills, or heavier riders. The performance difference between the two is substantial, so choose the motor size according to how you plan to use the bike.

Power, torque and climbing

I’ve ridden and read a lot about Bafang mid-drives: torque matters more for hill climbing and load hauling than nominal wattage alone. A 250W motor with high torque can still provide excellent hill performance if the gearing and cadence are appropriate. Conversely, a 1000W BBS-HD will provide much stronger acceleration and steep-climb capability, but it also increases stresses on the drivetrain and may be illegal for road use in some regions.

If I were commuting with some hills and average payload, the 250W kit could be sufficient and more legally compliant in many jurisdictions. If I need to haul a heavy load or ride extremely steep terrain, I’d look toward the 48V 1000W BBS-HD while acknowledging the additional maintenance and legal considerations.

Throttle and pedal assist behavior

The kit includes both a throttle and a 9-level pedal assist system via the C18 display. I like having the throttle available for instant power at stops or when initiating a pass, and the PAS levels allow me to tune how much assistance I get while pedaling. The nine levels provide fine granularity from gentle assistance to stronger boost.

I’d recommend starting at a mid-level PAS setting and adjusting upward for hills or heavier loads. Also, be mindful of the motor cutoff when the cadence sensor detects no pedaling if you use a mode that disables the throttle under certain regulations or setups.

Battery performance and range

The listing’s downtube battery is a 36V 13Ah pack with a built-in 30A BMS, dimensions 365 x 90 x 110 mm, and a lifetime of roughly 800–1000 cycles. I appreciate integrated BMS protection for overload, over-discharge, over-current, and short-circuit protection; it’s essential for safety and longevity.

Range estimates depend heavily on motor power, PAS level, terrain, rider weight, and conservatism. For the 36V 13Ah pack, I’d estimate moderate urban commuting range in the ballpark of 30–60 miles (50–100 km) per charge on low to medium assistance. If I’m riding on high PAS levels or using the throttle heavily, range would be at the lower end of that spread.

Battery specs and safety features

I like that the battery includes a 30A BMS which should prevent the pack from sustaining damage under normal use and provide a safer charging and discharging profile. The seller claims 800–1000 cycles, which aligns with modern lithium-ion chemistry expectations when cells are treated well — partial discharges and avoiding deep cycles can extend service life.

I always recommend charging in a safe spot, using the supplied charger, and avoiding complete depletion of the battery unless you intend to store it long-term at a lower charge percentage. Temperature extremes can affect performance and cycle life, so I avoid leaving the battery in very hot or very cold conditions.

Real-world range estimates

Based on the 36V 13Ah battery and a 250W motor, I’d expect around 30–60 miles on a charge depending on assistance level and load. For example, on mostly flat commutes at PAS 2–4 with a moderate rider weight, I’ve seen estimates close to the upper half of that range. If I’m climbing hills often or using the throttle heavily, I plan for the lower end and possibly carry a spare battery or plan recharges.

For the 48V 1000W variant, battery draw is much higher and range will decrease unless you step up to a higher capacity battery. If I chose the 1000W motor, I’d pair it with a battery designed for sustained higher discharge rates and larger capacity (and expect lower range in watt-hours per mile terms if ridden aggressively).

Display and controls

I find the 3.5″ Bafang C18 display practical for everyday use: it shows speed, PAS level, battery state, and trip data in a compact format. The display supports nine levels of pedal assist and has an auto backlight—handy for night riding as it improves visibility.

If you prefer color displays or more advanced navigation or Bluetooth features, some optional Bafang displays (noted as optional in the product name) provide additional functionality. I personally like simplicity and reliability; the C18 hits that sweet spot.

User interface and modes

I appreciate the nine PAS levels because they allow me to select gentle help when I want exercise and stronger assistance when I’m in a hurry or climbing. The throttle provides instant power for starts, and I check that PAS levels and throttle behavior are configured to match local e-bike regulations (some places restrict throttle-only speeds or forbid throttles).

I recommend memorizing which button increases or decreases PAS and where the power button is, since intuitive control aids safety while riding.

Optional displays and features

The product name mentions “Display Optional Kit” which implies you can select different display options during purchase. I like having the choice to pick a larger color screen or a more basic readout depending on my priorities. Optional displays may also offer better data logging, Bluetooth connectivity, or firmware updates, which can be valuable if you want more advanced diagnostics or customization.

If you choose an optional display, make sure it’s compatible with the motor controller version you receive and that you follow instructions for any firmware flash or configuration.

Brakes, crank, speed sensor

The kit includes a speed sensor and brake levers with motor cut-off functionality. I always test that the motor cuts out immediately when brakes are applied — a must-have safety feature that should be checked during initial setup.

The supplied crank should be compatible with the motor axle design; I recommend checking crank length and chainring size to match your riding style. Smaller chainrings give better hill gearings, while larger chainrings provide higher top speeds.

Regenerative or motor cut-off

Mid-drive Bafang kits generally don’t feature regenerative braking like hub motors do; instead they rely on motor-cutoff switches tied to the brake levers to immediately remove motor power. I prefer this setup for a mid-drive because it avoids complexity and ensures predictable cut-off during braking.

I test the brake switches in a stationary test and again at low speed to ensure the motor does not apply power when braking — this is especially important if the bike is used by multiple riders.

Maintenance and durability

I consider routine maintenance essential to long-term happiness with a mid-drive conversion. I’d expect to maintain the drivetrain (chain, cassette, chainrings) more frequently, since a mid-drive places motor torque through the bike’s gears and chain, increasing wear relative to a purely human-powered drivetrain.

Regularly checking the motor mounting bolts, cleaning the area around the motor, and inspecting wiring for chafing will pay dividends. The motor housing of Bafang mid-drives is generally robust, but neglect can lead to issues.

Motor care and seals

I’d avoid high-pressure washing near seals and connectors and instead use a damp cloth for cleaning. Bafang mid-drive motors are reasonably sealed, but aggressive exposure to water, mud, and grit increases the chance of electrical or bearing problems.

If I hear unusual noises, I’d pull the motor and check for chainline misalignment, damaged chainrings, or loose bolts before assuming a motor failure.

Battery maintenance and lifespan

Battery care is mostly about charge habits: I keep the battery charged between rides rather than letting it sit fully discharged, and I store it in a cool, dry place. Using the supplied charger and avoiding overheating during charging helps preserve cycle life.

If I plan to store the bike long-term, I keep the battery at about 40–60% charge and check it monthly. I’ve found that many users get the full cycle life claims if they follow decent charging habits.

Pros and cons

I like to lay out pros and cons plainly so I can make a balanced decision. Here are the main advantages and trade-offs I see.

Pros:

• I get a complete kit with motor, display, throttle, speed sensor, battery, charger, and tools — that simplicity is attractive.
• The Bafang mid-drive systems are proven and popular, meaning parts, community support, and know-how are widely available.
• The 9-level PAS plus throttle offers flexible control for commuting, hillclimbing, and mixed-use riding.
• The downtube battery form factor integrates well and keeps weight low and central on many frames.

Cons:

• I’m cautious about the mismatch between the product name (48V 1000W BBS-HD) and the detailed description (36V 250W BBS01B) — make sure you order the correct variant.
• Mid-drive torque increases drivetrain wear; I’d plan on more frequent chain and cassette replacements.
• Installation may be non-trivial for non-standard bottom brackets or very lightweight carbon frames, and I might need professional help.
• Legal restrictions in many countries make 250W the standard limit for e-bike classification; the 1000W option may not be street-legal where you ride.

Comparisons to other Bafang kits

I compared the listed 36V 250W BBS01B variant to the heavier BBS-HD 48V 1000W variant mentioned in the product name. The differences are straightforward: the 250W kit is commuter-friendly and more likely to meet legal e-bike limits; the 1000W BBS-HD is aimed at high-power applications and heavy loads.

I prefer the lower-power option for daily riding in urban areas because it usually doesn’t require special licensing and is easier on components. However, if my primary use case were off-road, cargo hauling, or steep mountain commutes, I’d lean to the BBS-HD while preparing for increased maintenance and potential regulatory steps.

Who this kit is for

If I want to turn a standard chain-driven bike with a compatible bottom bracket into an e-bike for commuting and occasional hills, this kit seems aimed at me. The 36V 250W option works well for riders who prioritize legal compliance and moderate assistance.

If I need high power for heavy cargo, very steep climbs, or higher speeds, I’d consider the 48V 1000W option — but I’d also prepare for additional maintenance and legal checks.

Installation checklist I’d follow

I like checklists and find they reduce mistakes during installs. Here’s what I’d do if I were installing this kit myself:

• Verify bottom bracket dimensions (34–36 mm diameter, 68–73 mm width) and frame clearance.
• Inspect drivetrain for wear; replace chain and cassette if near end-of-life to avoid accelerated wear from the motor.
• Remove existing crank and bottom bracket carefully, using the correct tools.
• Fit the motor axle, torque to spec, and install motor ring and cranks.
• Mount the downtube battery bracket and secure cables cleanly with zip ties.
• Connect the display, speed sensor, brake cut-off wires, and throttle, then test functionality in a safe space.
• Test-ride on low assistance and incrementally increase PAS to confirm behavior and braking cut-off.
• Re-check torque and cable routing after the first short ride.

I’d keep the manual and a small toolkit on-hand for the first few rides to address any minor adjustments.

Legal and safety considerations

I think about legal compliance before adding significant motor power to a bicycle. Many jurisdictions limit e-bike power to 250W or 500W and set top speed assistance thresholds (e.g., 25 km/h or 20 mph). If I install a 1000W motor, I’d check local laws, insurance requirements, and whether registration or a license is required.

For safety, I’d upgrade brakes if I planned to use higher PAS settings or heavier loads. Proper lighting, mirrors if required, and a good helmet are non-negotiable in my book.

Troubleshooting common issues

I’ve seen a few recurring problems with conversion kits and have a short troubleshooting guide that I’d use if something went wrong:

• Motor won’t power on: check battery charge, main connectors, and display power switch.
• Throttle not working: confirm throttle cable connection to controller and that PAS levels aren’t set to zero or a mode that disables throttle.
• Motor cuts out under load: inspect BMS for overcurrent trip, check battery state of charge, and test for loose connections under load.
• Excessive noise or chain skipping: check chainline, chainring bolts, and cassette wear; replace parts if necessary.
• Display error codes: consult the display manual — many codes are controller communications or sensor issues and have specific fixes.

If a fault persists beyond basic checks, I’d contact the seller or a bike shop experienced with Bafang motors.

Final verdict and recommendations

I’m impressed by the value proposition of a full kit that includes motor, display, throttle, speed sensor, battery, charger, and tools. For an urban commuter wanting reliable assistance within typical legal limits, the 36V 250W BAFANG BBS01B package described in the product details looks like a sensible, well-rounded option. It provides flexibility with nine PAS levels and a downtube battery that balances weight distribution.

If I need more power for cargo or very steep terrain, the 48V 1000W BBS-HD variant in the product name may be tempting, but I’d weigh the trade-offs in legality, drivetrain wear, battery requirements, and installation complexity. In either case, I’d verify the exact model and specifications with the seller before ordering to avoid the mismatch between the product name and detailed description.

Frequently asked questions (based on what I’d ask)

Q: Is the kit street-legal where I live? A: I’d check local regulations; the 36V 250W variant is more likely to comply with common e-bike rules, while the 48V 1000W motor often exceeds legal limits for standard bicycles.

Q: Can I install this on my carbon-frame road bike? A: I’d be cautious — many carbon frames have non-standard BBs or thin-walled shells that may not handle a mid-drive motor without frame-specific adapters or professional assessment.

Q: How long will the battery last? A: The seller claims 800–1000 cycles with proper care; realistically, I’d expect several years of daily commuting use if I avoid deep discharges and extreme temperatures.

Q: What maintenance will be needed? A: I’d expect more frequent chain and cassette changes, routine torque checks on motor mount bolts, and periodic inspection of wiring and connectors.

Q: Can I upgrade the display or battery later? A: Yes, Bafang systems typically allow display and battery upgrades, but I’d confirm electrical compatibility (voltage, connector types) before changing components.

Q: Does the kit require special tools? A: The package reportedly contains required motor-specific tools, but you’ll need common bike tools like a torque wrench, BB tool, and possibly a crank puller for older cranks.

Q: What if I want more range or power later? A: For more range, I’d move to a higher-capacity battery with compatible voltage and BMS; for more power, I’d consider the BBS-HD 48V 1000W option but be mindful of legality and drivetrain stress.

I hope this detailed review helps you make an informed choice. If you want, I can help you compare battery sizes and expected ranges in more precise numbers based on your typical routes and weight, or walk you through a step-by-step installation checklist tailored to your bike model.
